플레이어BD-MP1
Professional-grade Blu-ray player
BD-MP1
블루 레이 / DVD / CD / SD 카드 / USB 메모리 지원 컴팩트 사이즈 전문가용 멀티미디어 플레이어

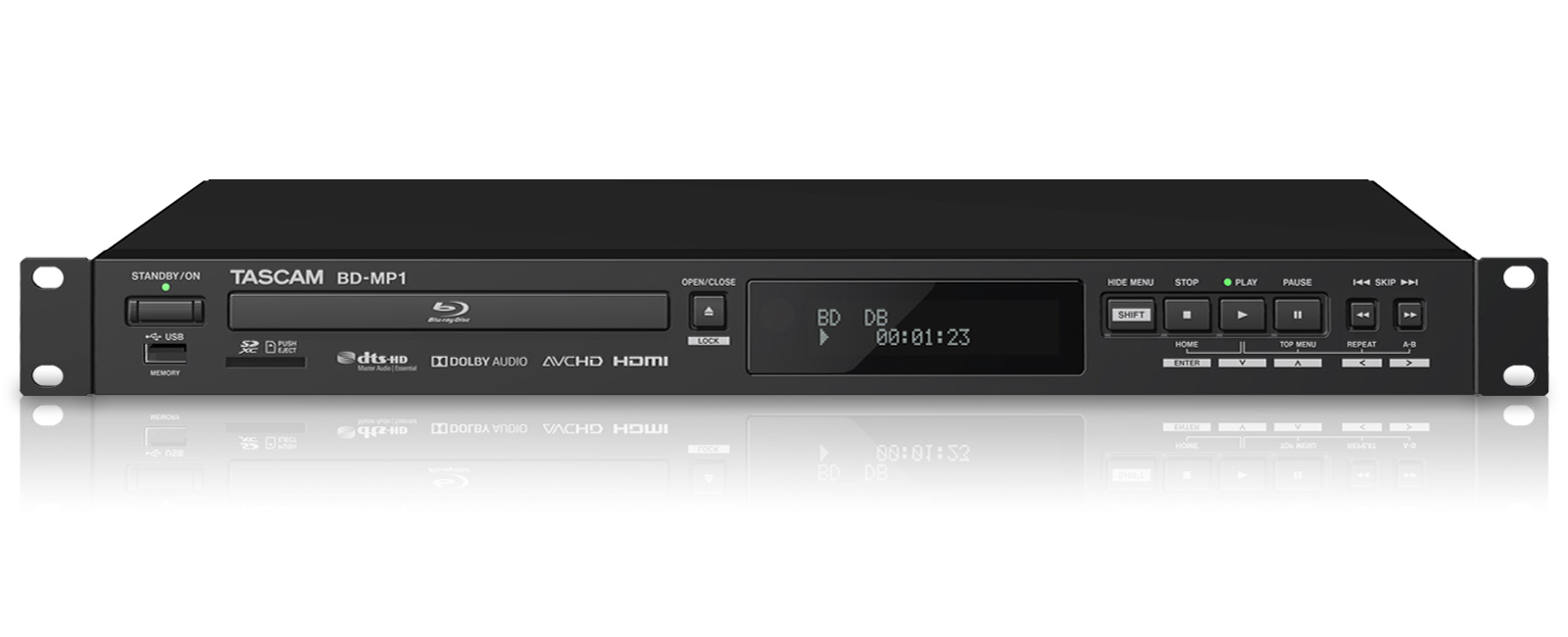

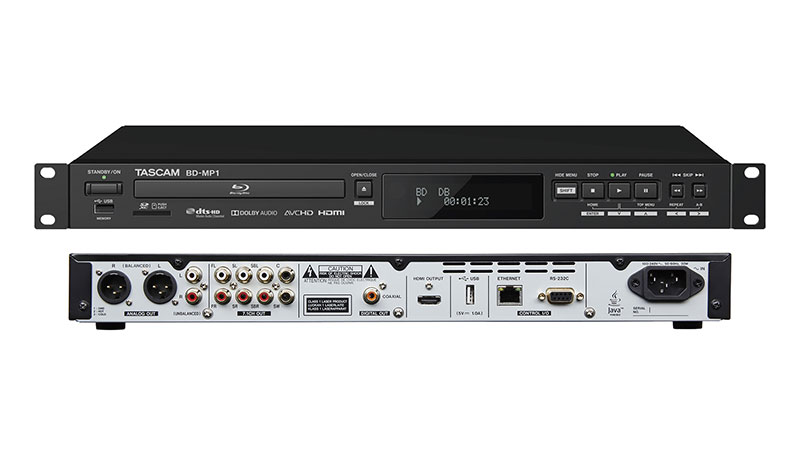

BD-MP1은 1U 랙 마운트 크기의 외부 제어 가능한 전문가용 Blu-ray 플레이어입니다.
BD-MP1은 공공, 교육 및 상업 시설, 극장, 오락 및 엔터테인먼트 사업을 포함하여 광범위한 상업 시설에서 사용의 알맞게 설계되었습니다.
시작 화면에서의 메뉴 숨기기 기능
Spec description
| Disc Media | |
| Blu-ray | BD25, BD50, BD-ROM, BD-R, BD-RE |
| DVD | DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW |
| CD | CD-DA, CD-R, CD-RW |
| Disc type | |
| Blu-ray | BDMV, BDAV, BD-Audio |
| DVD | DVD-Video, DVD-VR, AVCHD, DVD-Audio |
| Format | |
| Video | ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, RMVB, TP, TS, MP4, WMV |
| Audio | WAV, MP3, WMA, AAC, FLAC, APE |
| Picture | JPEG, GIF, PNG |
| Ratings (Audio) | |
| Blu-ray/DVD/USB/SD | |
| Sampling frequency | 44.1k/48k/64k/88.2k/96k/176.4k/192k Hz |
| Bit length | 16/24 bit |
| CD | |
| Sampling frequency | 44.1k/48k Hz |
| Bit length | 16/24bit |
| MP3/WMA | |
| Sampling frequency | 32k/44.1k/48k Hz |
| Bit length | |
| MP3 | 112k to 320k bps |
| WMA | 48k to 192k bps |
| HDMI Output | |
| Connector | HDMI 19pin Type A |
| Resolution | 480i/576i, 480p/576p, 720p, 1080i, 1080p |
| Aspect ratio | 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox |
| Video format | NTSC, PAL, Multi |
| HDMI signal system | RGB PC level, RGB Video level, YCbCr(4:4:4), YCbCr(4:2:2) |
| Digital audio outputs | |
| COAXIAL | |
| Connector | RCA pin jack |
| Format | IEC60958-3(S/P DIF) |
| Output impedance | 75Ω |
| Analog audio outputs | |
| Balanced | |
| Connector | XLR-3-32(1 : GND, 2 : HOT, 3 : COLD) × 2 (Stereo) |
| Output impedance | 200Ω |
| Normal output level | +4dBu (1.23 Vrms) |
| Maximum output level | +20dBu (7.75Vrms) |
| Unbalanced | |
| Connector | RCA pin jack × 1 pair |
| Output impedance | 200Ω |
| Normal output level | -10dBV (0.316 Vrms) |
| Maximum output level | +6dBV (2.0Vrms) |
| 7.1ch Audio outputs | |
| Connector | RCA pin jack × 8 (FL/FR/SL/SR/SBL/SBR/C/SW) |
| Connector color | FL, SL, SBL : White FR, SR, SBR : Red C, SW : Black |
| Output impedance | 200Ω |
| Normal output level | -10dBV (0.316 Vrms) |
| Maximum output level | +6dBV (2.0Vrms) |
| RS-232C | |
| Connector | D-sub 9pin × 1 |
| Format | RS-232C compliant |
| ETHERNET | |
| Connector | RJ-45 |
| Protocol | 10BASE-T/100BASE-TX |
| USB | |
| Connector | |
| Front | USB A-type × 1 |
| Rear | USB A-type × 1 |
| Protocol | USB2.0 compliant |
| Rated supply voltage | DC 5V, 1A |
| Mass storage class | 2TB (Max) |
| File format | FAT16/FAT32/NTFS |
| SD | |
| Media | SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 128GB) |
| Storage class | Max 128GB |
| File format | FAT16/FAT32/EX-FAT/NTFS |
| Power | AC 100V to 240V, 50/60Hz |
| Power consumption | 30W |
| Dimensions | 483(W) × 46.5(H) × 274.8(D) mm |
| Weight | 2.64kg |
| Operating temperature | 5 to 35°C |
| Included items | Remote control unite (RC-BDMP1), AC power code, rack-mounting kit, Owner's manual (with warranty) |
Audio performance
| Frequency response | 20Hz to 20kHz, +/-0.5dB (JEITA) |
| THD | 0.03% or less (1kHz, JEITA) |
| S/N ratio | 96dB or more (JEITA) |
| Dynamic range | 96dB or more (JEITA) |
| Channel separation | 89dB or more ( JEITA) |
